TP ON EDGE

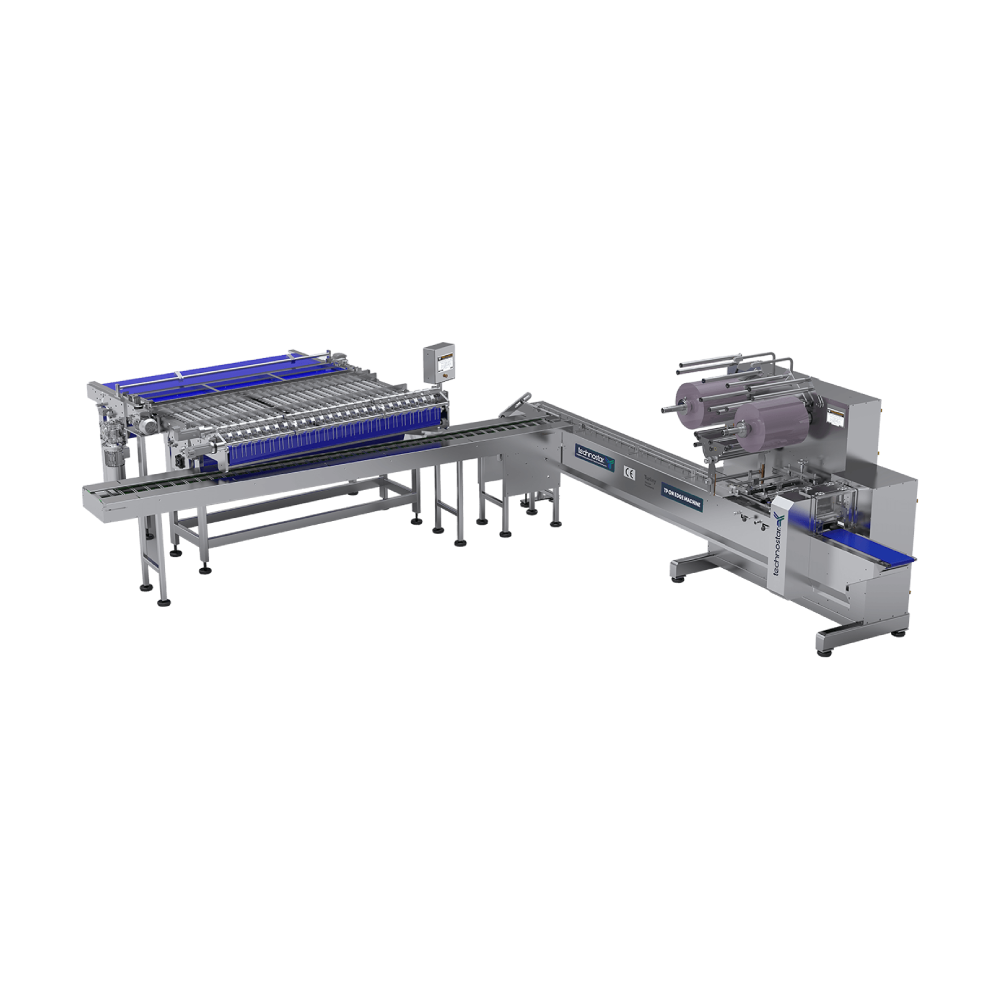

AUTOMATIC FEEDING FLOWPACK BISCUIT PACKAGING MACHINE

TP On Edge Biscuit Packing Machine with Automatic Feeding is a complete integrated and packaging line for cream filled, chocolate coated and all kinds of biscuits. Horizontal products coming from the random production line are vertically transferred to the accumulation channels first. It is possible to pack according to the desired packaging size by leaving the magazine with the e-motion control. In addition to the automatic bobbin transfer system, the package size of the product, photocell adjustment, recipe systems and other special applications can be easily accessed via the touch screen. Less labor requirement with the automation feeding system., less cost, higher profitability is offered.

Technical Specifications

VOLTAGE380V
TOTAL INSTALLED POWER 12 kW
BOBBINE GROUP Double bobbin loading, automatic switching
SUPPLY VOLTAGE3 Phase 380 V
DİSC HEATER POWER36 Volt-2X600 W
PHOTOCELL SETTİNGAUTOMATIC
DISC GROUP 3
JAW HEATER POWER3
FEEDING TYPE Automatic feeding system, L type feeding system
MOTOR VOLTAGE3 Phase 220 W
CAPACITY 150 packs/minute
JAW TEMPERATURES0 – 600 °C adjustable
NUMBER OF SERVO MOTOR 5 Servo Motion control
ELECTRİCİTY TRANSMİSSİON TO HEATERSBy Collector, Brush and Coal
PASTE FEATUREHot\cold
