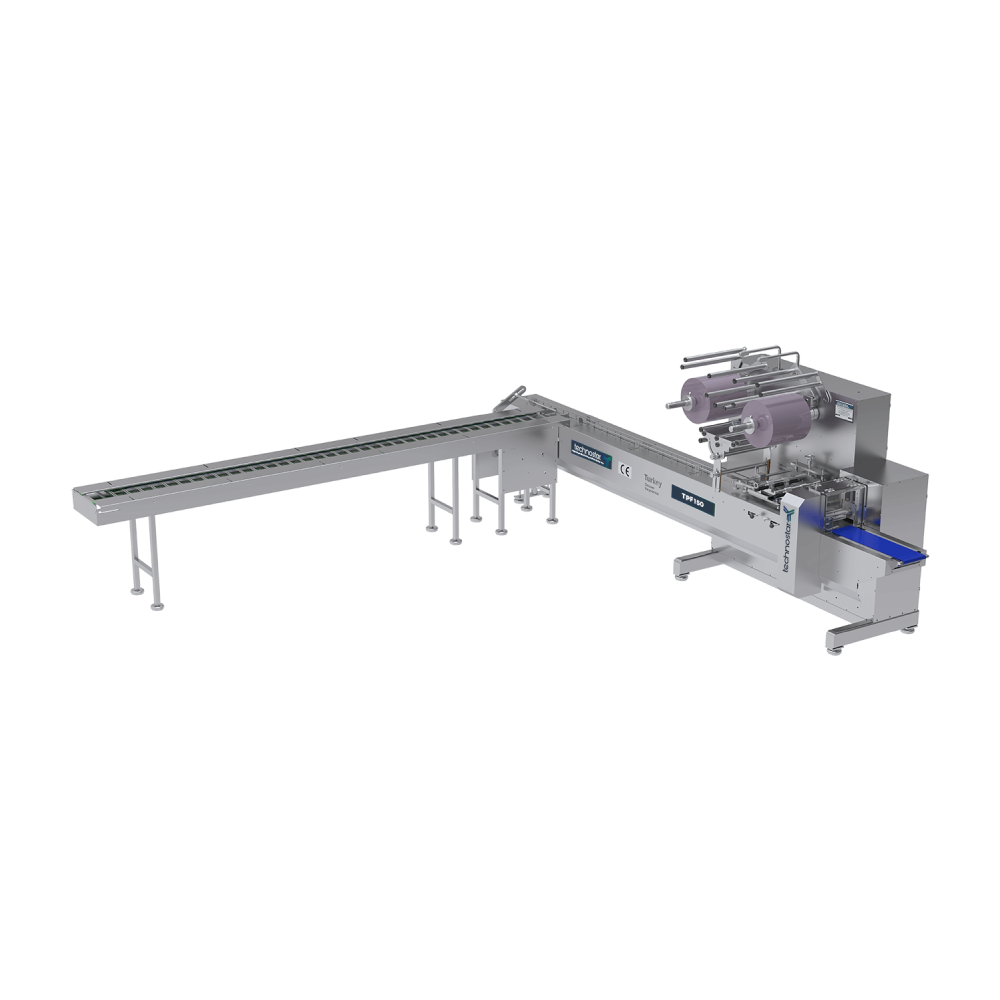

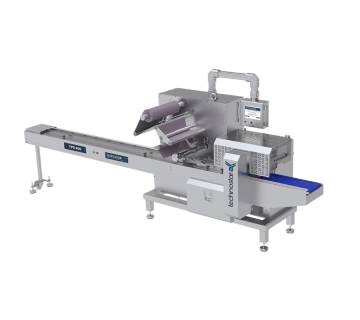

TPF 150 ON EDGE

SIDE FEEDING FLOWPACK BISCUIT PACKAGING MACHINE

With our TPF 150 Side Feed Biscuit Packing Machine, Biscuit etc. products are packed in multiple bellows type. The products are manually stacked between the shafts on the 90° band. With the start of the movement of the products between the shafts, they are transferred between the plastic pushers and packaged. Depending on the customer’s request, the production line, biscuit creaming machine and biscuit packaging machine can be synchronized, and high-capacity packaging can be made thanks to the automatic feeding and e-motion control system without human touch.

Technical Specifications

TOTAL INSTALLED POWER12 kW
SUPPLY VOLTAGE3 Phase 380 V
DISK HEATER POWER36 Volt-2X600 W
FEEDING TYPEManual feeding system, L-type feeding system
DISK GROUP3
JAW HEATER POWER36 Volts-2X600 W (In case of Single Jaw)
JAW TEMPERATURES0 – 600 °C adjustable
MOTOR VOLTAGE3 Phase 220 W
PHOTOCELL SETTINGAutomatic
VOLTAGE380V
MAXIMUM CAPACITY150 packs/minute
NUMBER OF SERVO MOTORS5 Servo E-Motion control
BOBBİN GROUPDouble bobbin loading, automatic switching
BONDING FEATUREHot \ cold
ELECtTRİCİTY TRANSMİSSİON TO HEATERSBy Collector, Brush and Coal

Technical data

• There is a PID temperature control system.

• Date printing unit, double coil and bellows package making apparatus are optionally available.

• It can work with or without photocell.

• There is a PLC electronic control system
