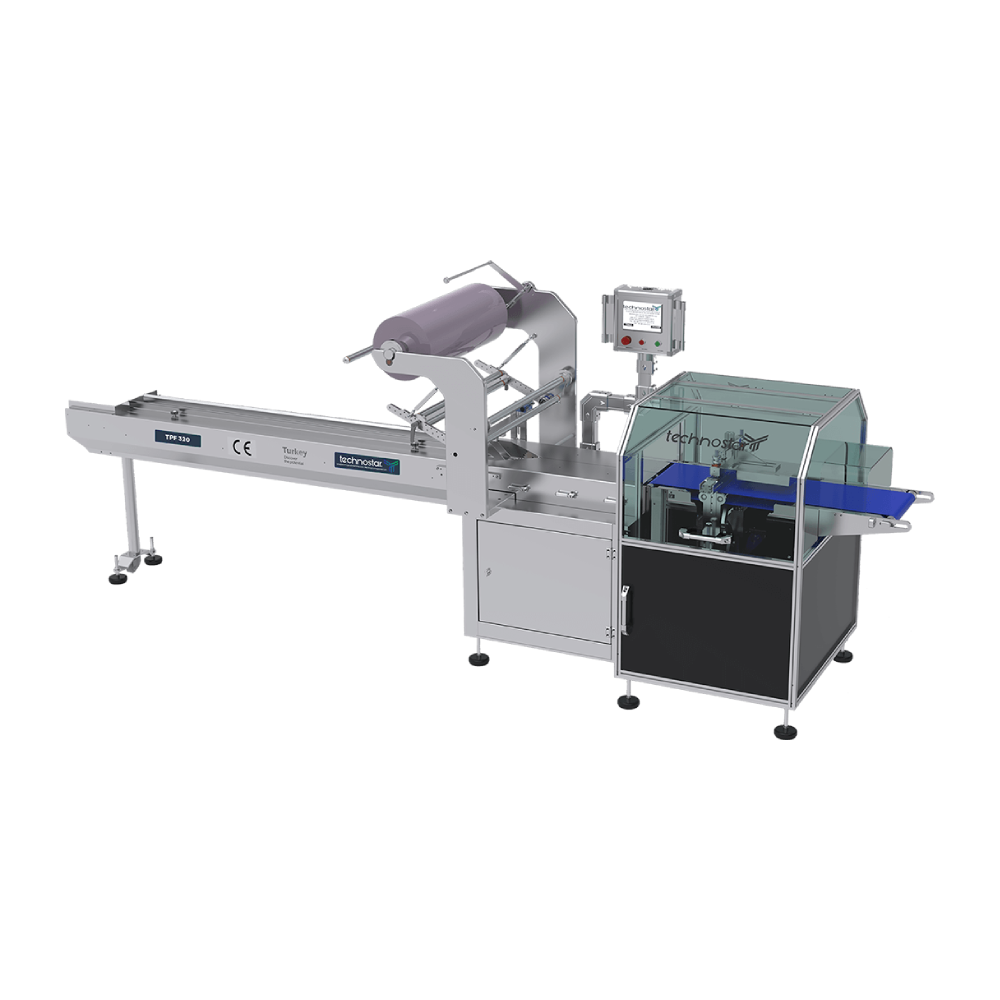

TPF 320

FLOATING JAW HORIZONTAL FLOWPACK PACKAGING MACHINE

The floating jaw packaging machine is a machine that allows products of different sizes to be stored for a long time by transferring them to the feeding belt, taking into account the wishes of the customer, and packaging them with e-motion control. All products with non-standard product dimensions (box, vegetable, fruit, chicken, etc.) can be packaged.

Technical Specifications

TOTAL INSTALLED POWER7 KW
BOBBINE GROUPMANUAL
PRODUCT TRANSPORTAUTOMATIC
PHOTOCELL ADJUSTMENTAUTOMATIC
CHASSISST37+AISI304
OPERATOR SCREENCOLOR TOUCH SCREEN 7’’
ADHESIVE FEATUREHOT
FEEDING TYPEMANUAL
CAPACITY80
VOLTAGE380/200V
NUMBER OF SERVO MOTOR4
NUMBER OF AC MOTOR1
PNEUMATICFESTO
