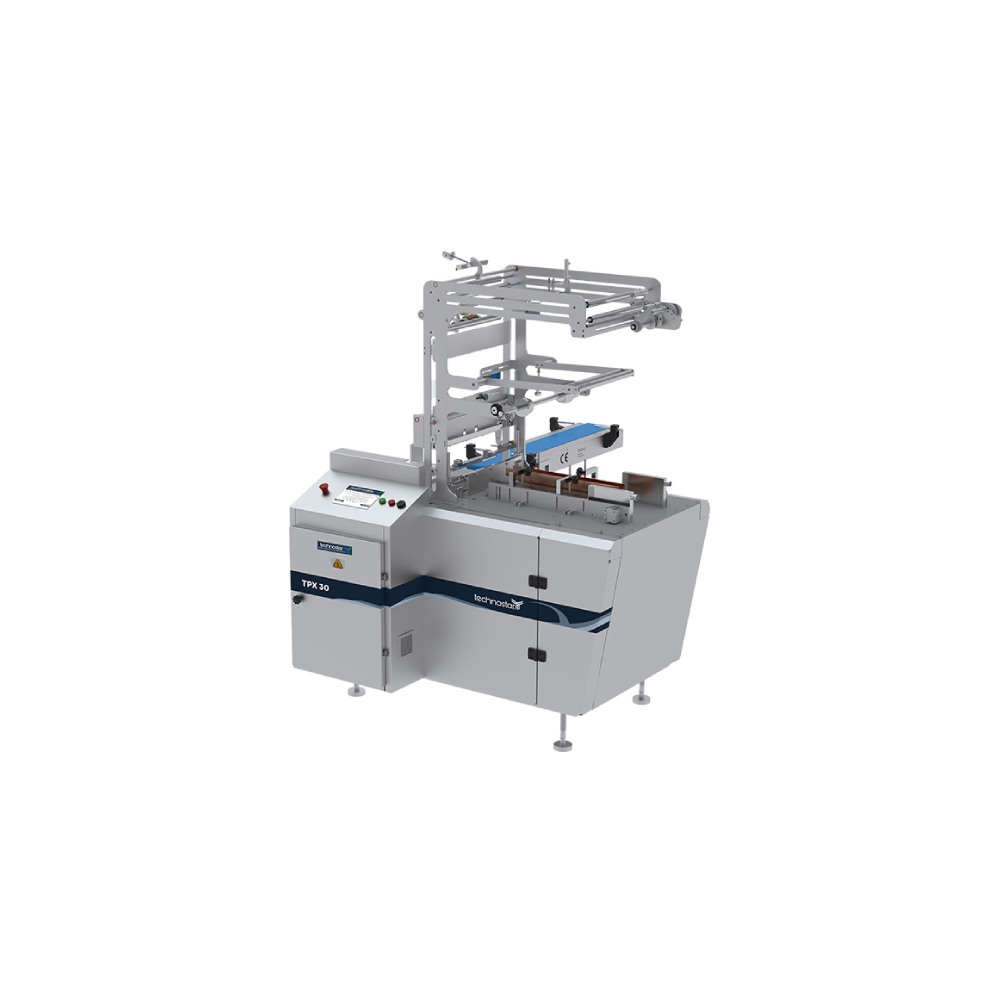

TPX 30

OVER WRAPPING ENVELOPE(X-FOLD) TYPE PACKAGING MACHINE FOR BOX

Envelope Type Box Packing Machine is designed for single and multi box packaging. Food, chemistry, tobacco, cleaning, cosmetics etc. It is the ideal box packaging machine that performs envelope type packaging by wrapping from the top and pasting from the forehead, which is preferred in a wide area in the sectors. Easy opening band and date printing unit are optional according to customer demand.

Technical Specifications

BOBBINE GROUPMANUAL
PRODUCT TRANSPORT SYNCHRONAUTOMATIC
PHOTOCELL ADJUSTMENTAUTOMATIC
CHASSISST37+AISI304
OPERATOR SCREENCOLOR TOUCH SCREEN 5.7’’
ADHESIVE FEATUREHOT
FEEDING TYPEMANUAL
SUPPLY VOLTAGE380V
CAPACITY30-50 PACK/ MIN
TOTAL INSTALLED POWER3,5 kW
NUMBER OF AC MOTOR1
NUMBER OF SERVO MOTOR1
PNEUMATICFESTO
LONGITUDINAL HEATER POWER400 W (220 volt)
SIDE HEATER POWER3 x 200W (220 volt)
MOTOR POWER1,1 kW
MOTOR VOLTAGE3 Faz 220V/ 3 Phases 220V
CONTROL CIRCUIT24V DC 3A Fuse-Protected
CONTROL FEED220V,24V DC

ask for an offer

[]
